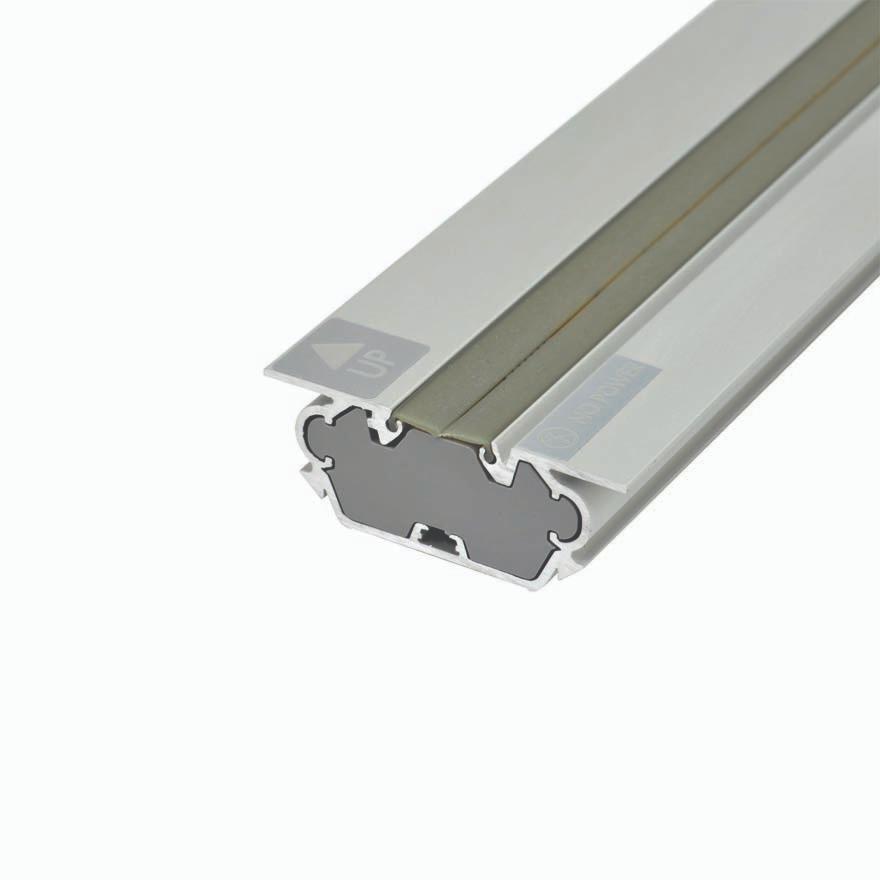

SFC3 - Power track 60 cm - connector on left side - Brushed aluminium

EUBIQ
(Code: 1030-0107-0006)
In Stock

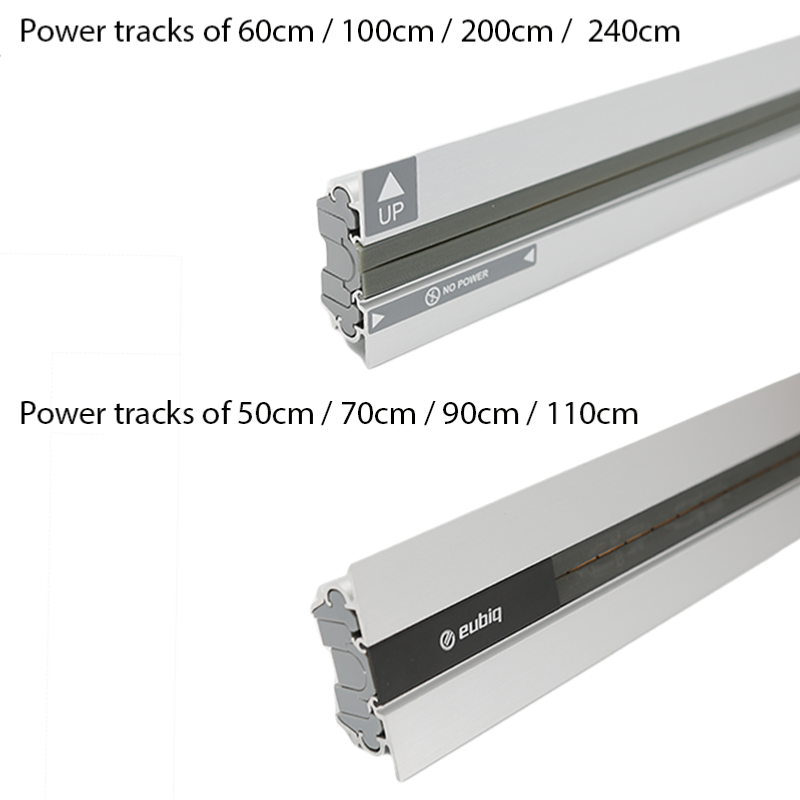

Available in length : 50, 60, 70, 90, 100, 110, 200, 240 cm
Connection : On the left
Length : 60 cm
Finishing : Hairline aluminium
81.12 €
800g
  1. |Characteristics|
    Voltage : 220/250 Volts
    Intensity : 32 A
    Protection rating : IP40
    Certification : IEC/EN 61534
    Lengths : 50 cm, 60 cm, 70 cm, 90 cm, 100 cm, 110 cm, 200 cm, 240 cm.
    Finishing : Brush aluminium
    Material : Aluminium
    Power supply : Electrical connector on the left side for tracks  of 60 cm, one connector at each side for tracks of 50 cm, 70 cm, 90 cm, 100 cm, 110 cm, 200cm

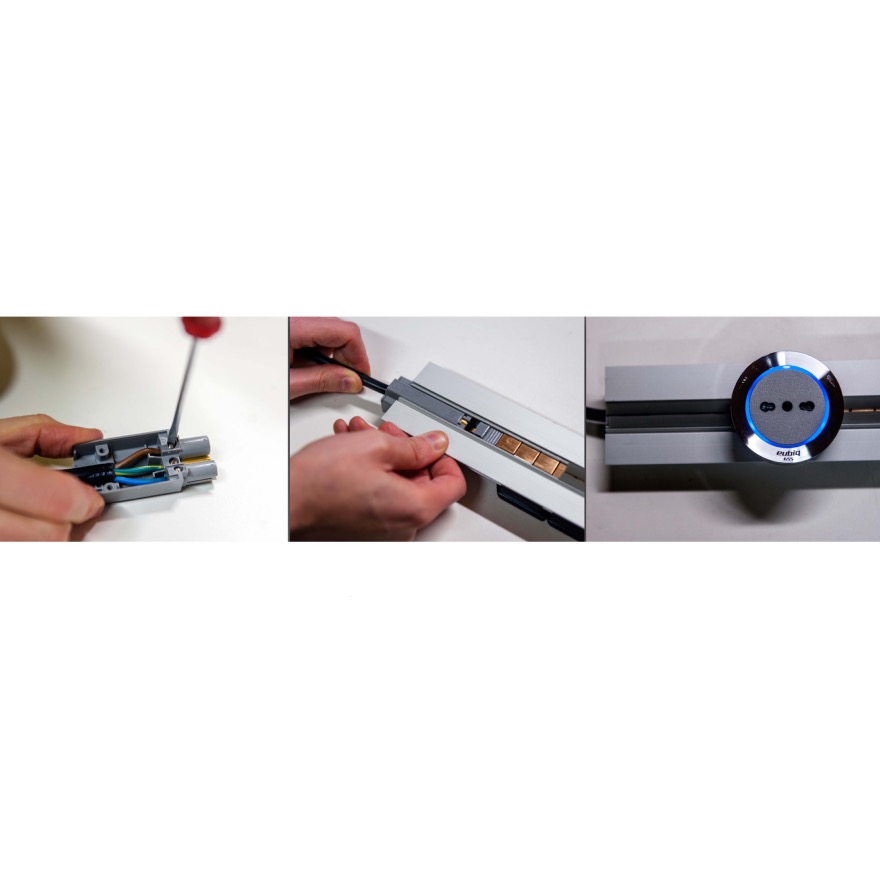

    The SFC3 electrical segment is easy to wire thanks to the quick connector. Choose your trunking model, integrate one or more SFC3 segments and create your own electrical installation.

    The SFC3 electrical segment is supplied with a connection on the left for short lengths, two connections (one at each end) for lengths over 100 cm.

    Our trunking:

    SH1 : Duct with low current compartment and groove for hooks and utensil bar, surface mounting.

  2. |Documentation|
    - Brochure SFC3
Code Connection  Length  Finishing  Price
1030-0107-0005  Both side    Hairline aluminium  65.04 € Details Buy
1030-0107-0006  On the left  60 cm  Hairline aluminium  81.12 € Details Buy
1030-0107-0007  Both side    Hairline aluminium  91.08 € Details Buy
1030-0107-0009  Both side  90 cm  Hairline aluminium  117.00 € Details Buy
1030-0007-0010  Both side  100 cm  Hairline aluminium  135.24 € Details Buy
1030-0107-0011  Both side    Hairline aluminium  143.04 € Details Buy
1030-0007-0020  Both side  200 cm  Hairline aluminium  270.36 € Details Buy
1030-0007-0024  Both side  240 cm  Hairline aluminium  294.50 € Details Buy
